Linux Networking for Kubernetes Users
Last updated: 09-25-25
This document provides an over-simplied overview of the components that enable network communication between pods, nodes, and the external world.
In [[Kubernetes]], the CNI (Container Network Interface) is responsible for equipping pods with network connectivity. Usually, the CNI creates a bridge interface on the worker node. This bridge acts as a Layer 2 virtual switch connecting all Pods on that node. Not all CNIs create a bridge. The AWS VPC CNI[1] is one such example. Let's first review how CNIs like Calico work. These create an overlay network in which every pod gets a private IP address and they use a bridge on the worker node for container networking.

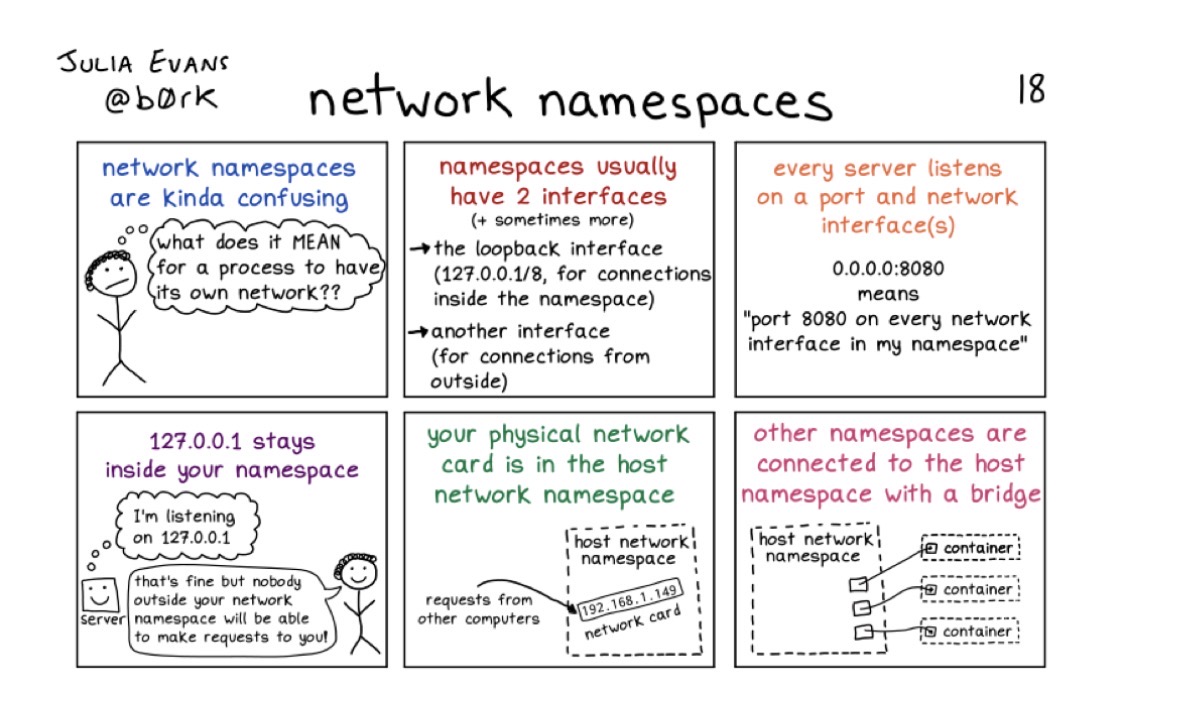

When a new Pod starts, the CNI gives the Pod its own isolated network namespace. Inside this namespace, the CNI creates a network interface and assigns it an IP address, so the Pod can communicate.
"A network namespace is a feature in [[Linux]] that allows you to create isolated network environments within a single Linux system. Each network namespace has its own network stack including network interfaces, routing tables, firewall rules and other network-related resources. This isolation allows you to run multiple independent network environments on the same physical or virtual machine, keeping them separate from each other." [2]
Each Pod (residing in its own network namespace) then receives a veth
pair. A veth
pair consists of two interconnected virtual network interfaces. Whatever goes into one end comes out the other, and vice-versa.

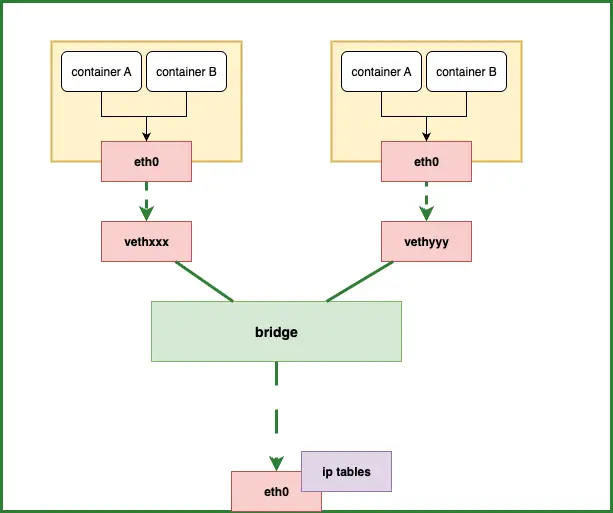

Here's how the veth
pair bridges the Pod with the worker node's network:
- Veth Pair Creation -- The CNI plugin creates a
veth
pair. Let's call the two endsveth0-pod
andveth0-bridge
. veth0-pod
into Pod Namespace -- One end of theveth
pair (veth0-pod
) is moved into the Pod's newly created network namespace (ip link set veth0-pod netns <pod-namespace>
). Inside the Pod, this interface is typically renamed to a standard name likeeth0
(ip link set veth0-pod name eth0
). Thiseth0
is what the applications running in the Pod see and use to send and receive network traffic.veth0-bridge
to the Bridge -- The other end of theveth
pair (veth0-bridge
) remains in the host's network namespace and is then attached to the CNI-created Linux bridge (e.g.,cni0
,br0
, ordocker0
).

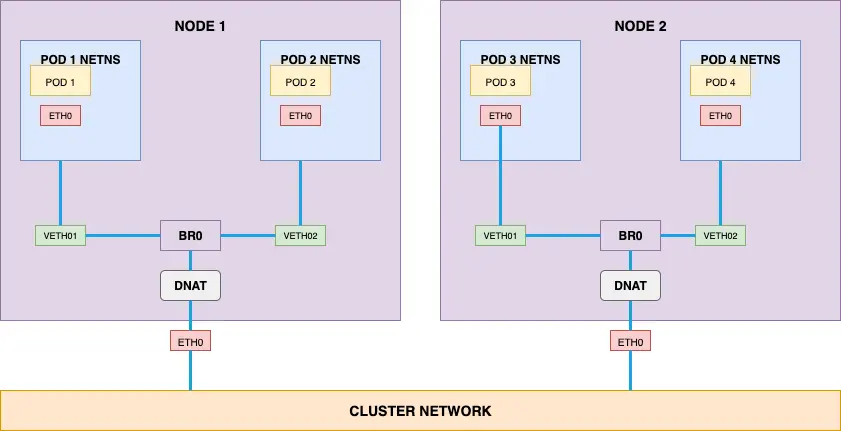

Inter-Pod Communication
When Pod-A on a node wants to communicate with Pod-B on the same node, traffic from Pod A's eth0
goes through its veth end (veth0-pod
), out the other veth end (veth0-bridge
), onto the bridge. The bridge then, acting as a Layer 2 switch, forwards the traffic directly to the veth0-bridge
end of Pod B, which then enters Pod B's namespace via its veth0-pod
(internal eth0
). The bridge interface is attached to the host network namespace, allowing traffic between Pods and the host or external networks to be forwarded.
To connect Pods with services, Pods on other nodes, and the external world, Kubernetes relies on the Linux kernel's built-in netfilter framework, which operates at Layer 3.
AWS VPC CNI

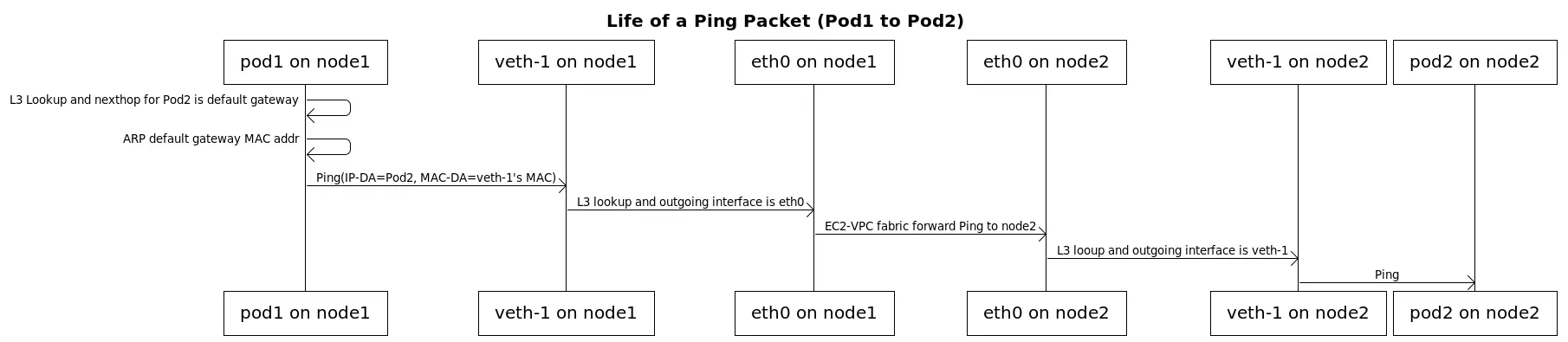

The AWS VPC CNI plugin takes a different approach from traditional CNIs. Instead of creating a bridge and using NAT for external communication, it leverages AWS VPC networking primitives directly. Each Pod gets a real VPC IP address from the subnet where the worker node resides.[3]
When a Pod starts, the VPC CNI performs these steps:
- Get IP Address – The Local IP Address Manager (L-IPAM) provides a secondary IP address from its warm pool
- Create veth Pair – One end goes to the Pod's network namespace, the other stays on the host
- Configure Pod Namespace:
- Assign the VPC IP address to the Pod's
eth0
interface with a/32
subnet mask - Add a default route via
169.254.1.1
(a link-local address) - Add a static ARP entry mapping the gateway to the host-side veth interface
- Assign the VPC IP address to the Pod's
- Configure Host Side:
- Add a host route for the Pod's IP pointing to the host-side veth interface
- Add policy routing rules to ensure proper traffic flow
Host-side veth interface:
- Remains in the host's network namespace (the default namespace)
- Gets a name like
eni123abc456
or similar AWS-generated identifier - Acts as the "gateway" for the Pod's traffic
- Has the MAC address that the Pod sees as its default gateway (169.254.1.1)
Pod-side veth interface:
- Gets moved into the Pod's isolated network namespace using
ip link set veth-pod netns <pod-namespace>
- Gets renamed to
eth0
inside the Pod (so applications see a standard interface name) - Receives the actual VPC IP address (like 192.168.82.72/32)
# Inside the container
$ ip addr show
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
3: eth0@if29: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 9001 qdisc noqueue state UP group default
link/ether ce:1e:02:2f:7e:65 brd ff:ff:ff:ff:ff:ff link-netnsid 0
inet 192.168.82.72/32 scope global eth0
valid_lft forever preferred_lft forever
inet6 fe80::cc1e:2ff:fe2f:7e65/64 scope link
valid_lft forever preferred_lft forever
$ ip route show
default via 169.254.1.1 dev eth0
169.254.1.1 dev eth0 scope link
$ ip neighbour
169.254.1.1 dev eth0 lladdr 8e:62:30:ec:7f:37 PERMANENT
Netfilter and Packet Routing in Kubernetes
When a Pod sends traffic to a Kubernetes Service, a Pod on another node, or to any external services (like google.com), the traffic is routed using netfilter.
netfilter is a collection of packet filtering hooks in Linux kernel network layer. Every routable packet (operating at Layer 3) in the system triggers netfilter hooks as it passes through the stack. We can use these hooks to inspect, modify, or filter traffic.

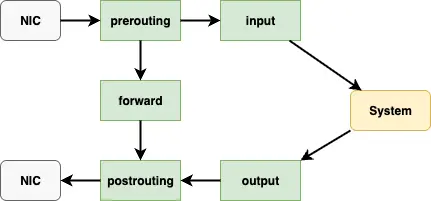

There are five netfilter hooks:
PREROUTING
-- The first hook when a packet arrives on the node from the outside world. DNAT (Destination Network Address Translation) is an example of this hook.kube-proxy
uses this chain to change the destination IP of incoming Service traffic from a ClusterIP to a backend Pod IP.INPUT
-- For packets meant for the local node itself. It's the final hook for incoming traffic.FORWARD
-- Packets not meant for the local node go through this hook (e.g., Pod-to-Pod communication on different Nodes, Pod to external service). INPUT and FORWARD hooks controls inter-Pod communication and network policies.OUTPUT
-- This is the first hook all outgoing traffic hit.POSTROUTING
-- The last hook for traffic leaving the node. It's used for tasks such as changing the return address on an envelope. SNAT (Source NAT) is an example. When a Pod communicates externally, its source IP (the Pod's internal IP) is translated to the node's IP here, so external services can send replies back to the node.
Hook | When the kernel hits it | Typical Kubernetes use-case |
---|---|---|
PREROUTING | First touch on arriving packet | kube-proxy DNAT: ClusterIP → Pod IP |
INPUT | Packet destined to local host | NodePort/health-check traffic to kubelet or hostNetwork Pod |
FORWARD | Packet just passing through node | Pod-to-Pod on different nodes; enforced by NetworkPolicy rules |
OUTPUT | First touch on locally-generated packet | Pod egress or kube-apiserver outbound webhook calls |
POSTROUTING | Last touch before wire | SNAT (MASQUERADE) Pod IP → worker node IP for external replies |
Conceptually, we can model three traffic flows based on their source and destination:
- Pod → external -- PREROUTING → FORWARD → POSTROUTING (SNAT applies here).
- External → Pod (via Service) -- PREROUTING (DNAT to Pod) → FORWARD.
- Pod → Pod (via Service) -- PREROUTING → INPUT.
Netfilter allows traffic originating from Pods to be routed out of the node's primary network interface for external communication (with SNAT applied by netfilter). Similarly, incoming traffic destined for a Pod (e.g., via a Service's DNAT) arrives at the node, is processed by netfilter
, and then routed to the correct Pod via the bridge and its associated veth
pair.
For Pod-to-external traffic (outside the VPC), the VPC CNI uses SNAT to translate the Pod's VPC IP to the node's primary ENI IP address. This is handled by an iptables rule:
-A POSTROUTING ! -d <VPC-CIDR> -m comment --comment "kubernetes: SNAT for outbound traffic from cluster" -m addrtype ! --dst-type LOCAL -j SNAT --to-source <Primary IP on the Primary ENI>
This ensures that external services see traffic as coming from the node's IP, allowing proper return traffic routing.
Iptables was the standard packet-filtering solution for a long time, but has been replaced by nftables. Nftables was in turn supplanted in some areas by eBPF.[4]
Netfilter Tables and Chains
Whenever a network packet reaches one of Netfilter's hooks (like PREROUTING
or INPUT
), the Linux kernel examines it to decide what to do with it; whether to accept, drop, modify, or forward it.
As mentioned earlier, you can define custom rules at each hook to control the traffic. These rules aren't attached directly to the hooks; instead, they're organized into "chains" within specific Netfilter "tables".
The structure is: Table → Chain → Rule.
A table is a collection of chains. And a chain is an ordered list of rules. Each rule has a match condition (for example, if source IP is 1.1.1.1) and an action (such as ACCEPT, DROP, DNAT).
A chain is a checklist of rules. Each rule says "if the packet header looks like this, then here's what to do with the packet". If the rule doesn't match the packet, then the next rule in the chain is consulted. Finally, if there are no more rules to consult, then the kernel looks at the chain policy to decide what to do. In a security-conscious system, this policy usually tells the kernel to DROP the packet.[5]
When a packet hits a hook (let's say PREROUTING
), the kernel checks tables that are registered for the hook. Each table has a set of built-in chains corresponding to the hooks.
Netfilter has six tables[6]:
nat
-- for address translation (DNAT and SNAT).filter
-- for deciding whether to allow or block traffic.mangle
-- for adjusting packet headers (rarely touched by Kubernetes).raw
-- for rules that should bypass connection tracking.
kube-proxy primarily works in the nat and filter tables.
Conntrack
Conntrack (Connection Tracking) is a netfilter
component that tracks the state of all network connections (or "flows") passing through the Linux kernel. It's used for stateful operations like NAT and firewalls.
For each flow (e.g., TCP session, UDP exchange), conntrack
stores the following information:
- Source IP and Port
- Destination IP and Port
- Protocol (TCP, UDP, ICMP)
- Connection State (TCP ESTABLISHED, TIME_WAIT, etc.)
- Original and Reply Direction Tuples -- Vital for NAT to correctly reverse translations for returning packets.
Kubernetes environments, especially with high connection churn, can generate a very high volume of network connections. This can result in the conntrack table getting full.
Common Issues and Adjustments:
- Conntrack Table Full: If the table fills up, new connections are dropped, causing network failures. You'll see "nf_conntrack: table full, dropping packet" in logs.
- Solution: Increase
net.netfilter.nf_conntrack_max
. - A common rule of thumb is
RAM_in_MB * 16
. For example, on a 32GB node:sudo sysctl -w net.netfilter.nf_conntrack_max=524288
. This can be made persistent in/etc/sysctl.conf
.
- Solution: Increase
Monitoring Conntrack
You can monitor conntrack
usage to identify potential issues:
- Check current connection count --
cat /proc/sys/net/netfilter/nf_conntrack_count
- Max entries --
cat /proc/sys/net/netfilter/nf_conntrack_max
- Detailed info --
conntrack -L
(can be very verbose on busy systems) - Errors in dmesg --
dmesg | grep nf_conntrack
NFTables Mode for Kube-proxy
https://kubernetes.io/blog/2025/02/28/nftables-kube-proxy/
[[eBPF]] And Netfilter
The bpfilter
project enhances Netfilter by converting iptables
or nftables
rules into high-performance eBPF programs that run entirely in kernel space. Traditional Netfilter can be slow for complex rules that require copying packets to user-space for tasks like deep inspection or observability. eBPF eliminates these copies by processing packets directly at Netfilter's hooks. [7]
The core motivation behind bpfilter
is performance. While Netfilter is powerful, its traditional rule processing can become a bottleneck with very large and complex rule sets (common in large Kubernetes with a high Pod churn rate). By converting these rules into eBPF programs, bpfilter
leverages eBPF's advantages. Note that, bpfilter
is not a full replacement for Netfilter but a layer that translates rules into eBPF for faster processing.
Instead of hard-coded hooks, eBPF programs can be attached to various event points in the kernel, including network-related ones. When an event occurs (e.g., a packet arrives at an interface), the attached eBPF program is executed.
eBPF is flexible and performant because:
- Programs are written in a restricted C-like language, compiled to bytecode, and then JIT-compiled to native machine code for extreme speed.
- They run directly in the kernel space, avoiding costly context switches between user and kernel space.
- A verifier ensures programs are safe, won't crash the kernel, and will terminate.
CNIs like Cilium use eBPF and don't need iptables. Cilium provides an ==eBPF-based kube-proxy
replacement==. Instead of iptables
rules, Cilium injects eBPF programs directly into the kernel's data path (e.g., using XDP
or TC
hooks). These eBPF programs handle the load balancing, network policy enforcement, and DNAT/SNAT for services much more efficiently using highly optimized eBPF maps (kernel data structures) for service endpoints. This eliminates the iptables
overhead and significantly improves performance and scalability. You can enable this mode when installing Cilium.
Network Policies
Standard Kubernetes Network Policies are often implemented by CNI plugins by generating iptables
(or eBPF) rules. These rules are added to the FORWARD
chain (and sometimes INPUT
/OUTPUT
for host policies).
Cilium (via the Cilium agent) takes Kubernetes NetworkPolicy
and its extended CRDs like CiliumNetworkPolicy
, compiles them into eBPF programs and maps, and attaches eBPF programs (for example at ingress TC hooks on Pod veth
interfaces) to inspect packets as they enter a Pod's network namespace. For L3/L4 policies this is handled entirely in-kernel. For L7/application-layer policies (e.g. HTTP, gRPC, DNS), Cilium uses an Envoy proxy helper (running as part of the Cilium infrastructure) to enforce or assist in policy. This approach yields more granular control, faster policy enforcement, and avoids many of the overheads of traditional iptables rule-processing.[8]
Pod-to-Pod Networking in Cilium
Even for basic Pod-to-Pod communication, Cilium leverages eBPF. Traditionally, packets between Pods might traverse a Linux bridge and then rely on the kernel's routing table, potentially hitting iptables
FORWARD
chain rules.
Cilium optimizes the data path for Pod-to-Pod communication. While the underlying virtual interfaces (veth pairs, bridges) might still be present, the actual forwarding logic and encapsulation/decapsulation (for overlay networks like VXLAN or Geneve) are handled by highly optimized eBPF programs[9]. This avoids the traditional Linux bridge processing path and iptables
traversal for regular Pod traffic, leading to lower latency and higher throughput.
